About this item

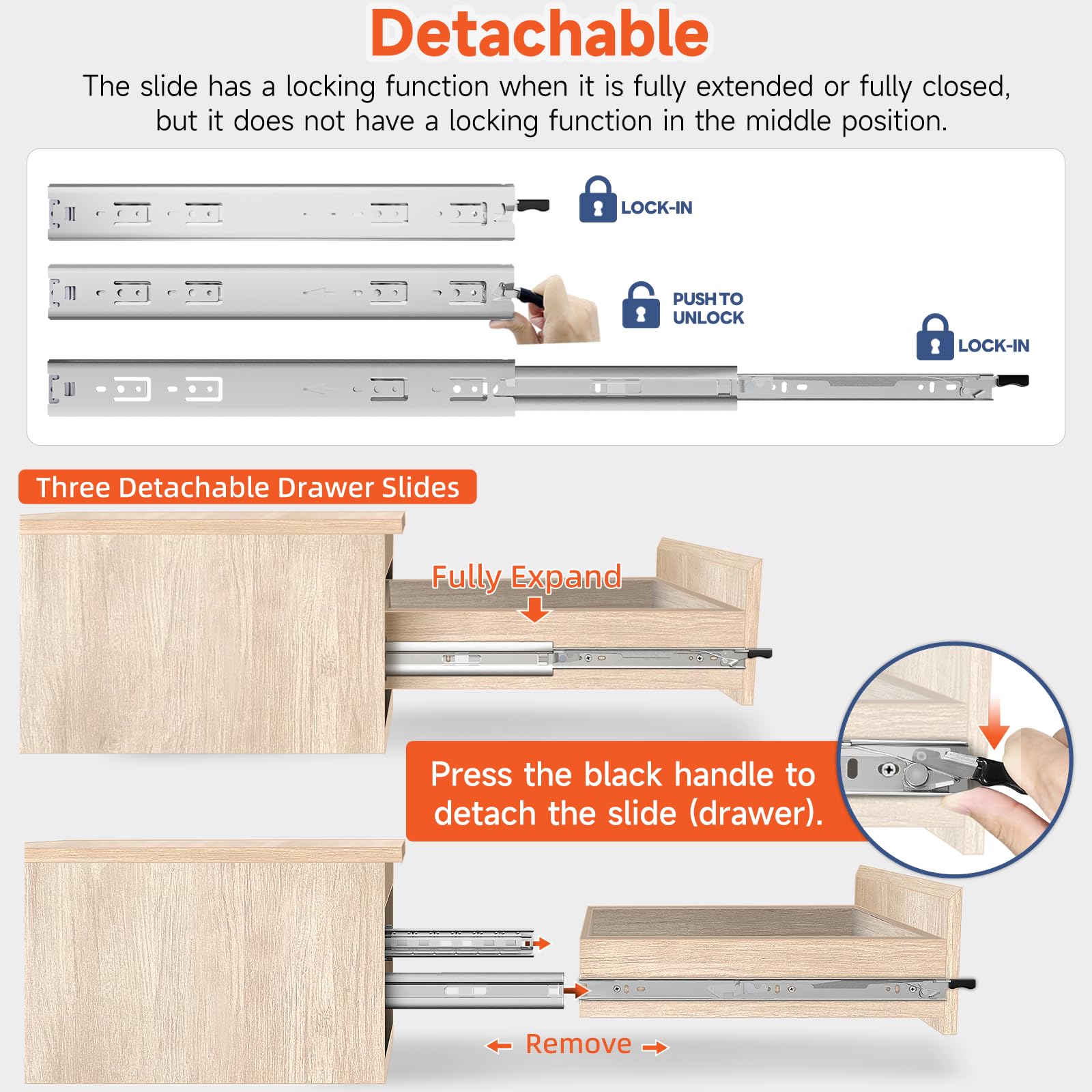

【Lock Drawer Slides&Removable】 Simultaneously press the black handles on both sides to lock and unlock the drawer, it can be locked when fully closed, and can be locked when fully opened to prevent sliding. Locking slides can be used on shelves, cabinets, industrial drawers, RVs, trucks, vending machines, and more.
【Installation Requirements】 Size: 11.8"(300mm); Fully extension length: 23.5"(597mm); Installation clearance: Left: 0.50" (13mm); Right: 0.50" (13mm). Approximate length of the black handle: 1.18" (30mm). You can choose the size of the rail according to the depth of the drawer. The length of the rail should be less than or equal to the drawer. Refer to the picture above.
【Maximum Bearing Capacity 150lb】 All three sections of rails are made of 1.5mm thick Q235 thickened steel plate, and high-strength, high-density and high-quality cold-rolled steel. It can support heavy load storage without deformation, and the bottom is equipped with a limited rubber pad, which is made of ABS plastic, with good wear resistance and good impact resistance. After testing, the number of opening and closing times has reached more than 150,000 times.
【Full Extension Slides&Double Anti-rust】Full extension heavy duty drawer slides support access to the whole space, and the drawers can be pulled out completely for easy storage of items. The surface of the slide rail is treated with a galvanized blue sealing process, which isolates the slide rail from direct contact with air and water, and increases oxidation resistance and corrosion resistance.
【Notes for Slide】 (1)The locking mechanism can only take effect when the drawer is fully closed or fully opened. (2)Due to different usage scenarios, the product does not contain screws. You can buy M4 screws yourself.(3)When installing, please push the inner ball bearing to the top of the slide rail first, then connect with the slide rail, and finally complete the installation.
